Vi-Cone Mountings

Description:

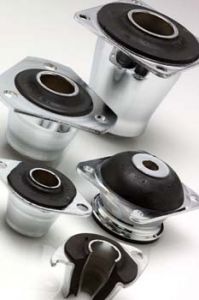

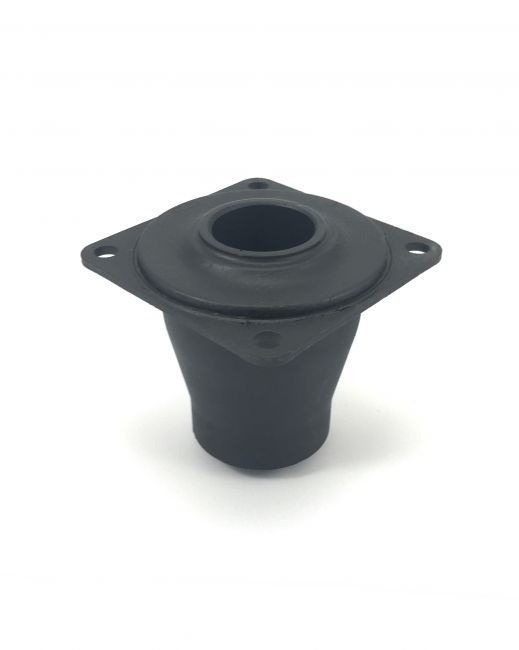

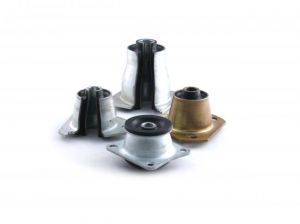

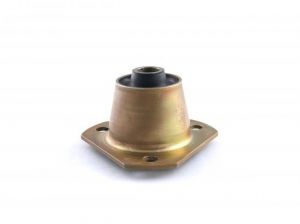

Vibracoustics Ltd Vi-Cone Mountings are conical in form, fully bonded and produced in a wide range of sizes. Loads are applied to the rubber section in a combination of shear and compression which ensures maximum service life of both the polymer and the polymer to metal bond.

Compact and robust designs with high load capacities make these mountings suitable for use in many varied mobile and static applications. Vi-Cone mountings provide excellent isolation of vertical vibration whilst being able to withstand frequent horizontal shock loadings.

The mountings are made captive and therefore fail-safe in an application by the addition of top and bottom washers. More information on creating this fail-safe option can be found on data sheet 47-A-05. Vi-Cone mountings are produced in several shore hardnesses as listed below, others are available to order.

Technical PDFS

Part Numbers

VS4701 N45, VS4701 N60, VS4702 N45, VS4702 N60, VS4702 N70, VS4703 N45, VS4703 N60, VS4703 N70, VS4704 N45, VS4704 N60, VS4704 N70, VS4705 N60, VS4705 N70, VS4706 N60, VS4707 N35, VS4707 N50, VS4707 N65, VS4708 N60, VS4709 N45, VS4709 N50, VS4709 N60, VS4709 N70, VS4708 N60, VS4709 N45, VS4709 N50, VS4709 N60, VS4709 N70, VS4710 B45, VS4710 N60, VS4710 N70, VS4711 N45, VS4711 N50, VS4711 N60, VS4711 N70, VS4712 N45, VS4712 N60, VS4713 N45, VS4713 N60, VS4713 N70, VS4714 N45,
VS4714 N60, VS4715 N45, VS4715 N60


Assembly Part Number VS47** N** AS1
