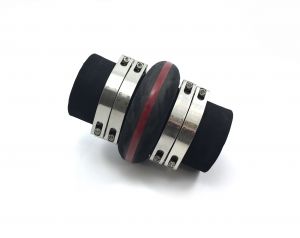

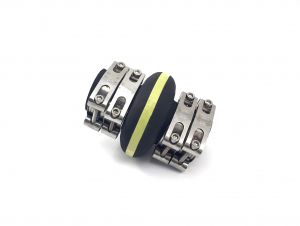

3K & 3K2 Rubber Bellows

Click Here To Enlarge

Description:

In addition to their flanged compensator range, Vibracoustics Ltd offer the 3K and 3K2 rubber expansion joints. These small, low weight expansion joints are flexible and simple to install and provide the ideal service connection where avoidance of noise transmission is a key factor.

The 3K ranges accommodate misalignment, axial and lateral pipe work movements and dramatically reduce the transmission of noise, vibration and shock.

Specification:

The expansion joints are manufactured in black Nitrile rubber, reinforced with synthetic fabric to achieve a high mechanical strength. They are suitable for use with cooling water, fuel and lubrication oil pipe work systems up to 90 deg. C. The burst pressure safety factor is 5 times the working pressure of 4 bar. The minimum working pressure (absolute) is 70 kPa but can be lowered by fitting a vacuum support ring.

Alternative rubber specifications and sizes are also available for other applications on
request.

Enquire About This Product

Technical PDFS

73 A 01 15c

73 A 02 15c

Part Numbers

VS 3K
VS 3K2
VS 3K 025.0NB
VS 3K 032.0NB
VS 3K 033.7NB
VS 3K 038.0NB
VS 3K 042.4NB
VS 3K 044.5NB
VS 3K 048.3NB
VS 3K 054.0NB
VS 3K 060.3NB
VS 3K 063.5NB
VS 3K 076.1NB
VS 3K 088.9NB
VS 3K 108.0NB
VS 3K 114.3NB
VS 3K 115.8NB
VS 3K 139.7NB
VS 3K 168.3NB
