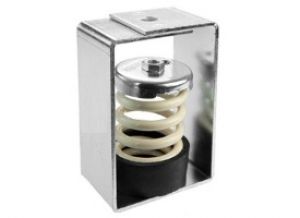

Spring Hangers

Click Here To Enlarge

Description:

Vibracoustics Ltd Spring Hangers are simple to assemble and install on site.

Standard units give up to 25mm deflection (Where greater deflections are required non-standard springs may be fitted).

Typical Applications Include:

  • Pipework supports.
  • Ceiling hangers.
  • Equipment hangers.

Housing Finishes:

STANDARD: Stove enamel
OFFSHORE: Flame spray Zinc to BS 2569

Spring Finishes:

STANDARD: Heavy grease
OFFSHORE: Plated & Painted (Or to clients specification)

Ancillaries:

Plated

Elastomer:

Neoprene

Standard supply includes the housing, spring, spring end caps and elastomer seating.

Drop-rods and top fittings can be supplied as extras to the clients requirements.

Enquire About This Product

Technical PDFS

77 A 03 16f

Part Numbers

VS77008-033
VS77008-060
VS77008-100
VS77008-150
VS77008-200
VS77008-250
VS77008-300

VS77009-250
VS77009-350
VS77009-450
VS77009-550
VS77009-650
VS77009-750
