Vee Hangers

Click Here To Enlarge

Description:

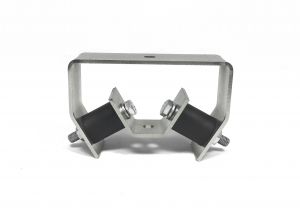

Vibracoustics Ltd Vee Hanger VS7107 consists of brackets with a stiffener plate and two V2 type bobbin mounts in a vee configuration.

Designed originally as a flexible suspended ceiling support, the mount is ideal for many applications.

The standard construction provides a simple fixing and is available in a range of rubber elements to achieve optimum isolation properties, over a wide range of supported loads.

Typical Applications Include:

  • Pipework supports.
  • Ceiling hangers.
  • Cable tray supports.
  • Equipment hangers.

Vibracoustics Ltd Vee hangers are simple to assemble and install on site.

Studding is not included as standard but is available separately with nuts and washers.

Enquire About This Product

Technical PDFS

77 A 02 19g

Part Numbers

VS7107 AS25/45
VS7107 AS25/55
VS7107 AS30/45
VS7107 AS30/55
