Funnel Deck Pipe Supports

Click Here To Enlarge Click Here To Enlarge
Click Here To Enlarge
Click Here To Enlarge

Description:

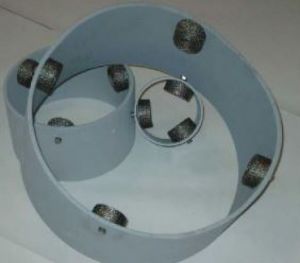

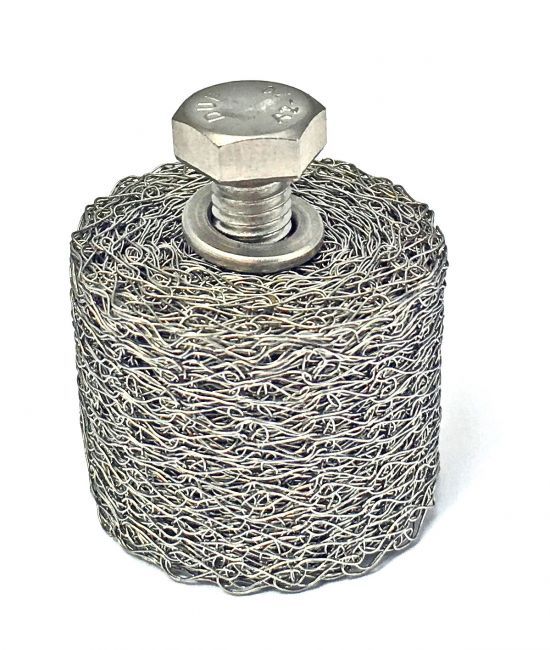

Vibracoustics Ltd Funnel Deck Pipe Supports allow pipe expansion whilst locating and supporting the pipe work as it passes through the Funnel Deck. The normal design consists of a ring of spaced stainless steel cushions. Two sizes of cushions are available, the preferred size being determined by the pipe work dimensions.


The actual support location for the exhaust pipe work system can be either fabricated by the shipyard using the cushions as recommended in the table on 71-A-20, or obtained as a complete arrangement with support ring, cushions and raincap.

Enquire About This Product

Technical PDFS

71 A 10 16g

Part Numbers

SS CUSHION PUD SK 01
SS CUSHION PAD SK 02
SS CUSHION PAD SK 03
