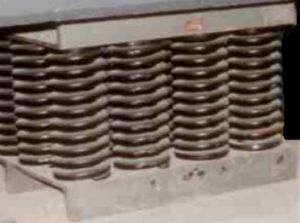

Open Spring Mountings Type HD(T)

Click Here To Enlarge

Description:

Vibracoustics Ltd Open Spring Mountings are available with load capacity up to 18000kg per unit.

The standard HD(T) range uses open top housings, pre-concreted on site and is available with three spring types providing 25mm, 50mm and 75mm static deflections at loads up to 17000kg per unit. The HD(T) range is used on heavy duty industrial applications, providing a low frequency suspension.

Power plant installations of 750,000kg have been successfully installed within critical urban areas using combined HD(T) mountings and dampers (Product Group 96).

Typical Applications Include:

           • Base load power plant.
           • Peak load power plant.
           • Engine test beds.
           • Fragmentisers.
           • Crushing mills.

Enquire About This Product

Technical PDFS

95 A 03 15e

Part Numbers

HD(T) 31
HD(T) 32
HD(T) 33
HD(T) 41
HD(T) 42
HD(T) 43
HD(T) 51
HD(T) 52
HD(T) 53
HD(T) 61
HD(T) 62
HD(T) 63
HD(T) 71
HD(T) 72
HD(T) 73
HD(T) 81
HD(T) 82
HD(T) 83
