SLIC Sandwich Mountings

Click Here To Enlarge Click Here To Enlarge Click Here To Enlarge Click Here To Enlarge
Click Here To Enlarge
Click Here To Enlarge
Click Here To Enlarge
Click Here To Enlarge

Description:

Vibracoustics Ltd SLIC Sandwich Mountings provide high static and shock load capacities in compression, whilst offering excellent isolation in the horizontal shear direction. The mounts can be installed flat, or in ‘Vee’ inclined pairs as per data sheet 60-A-01.

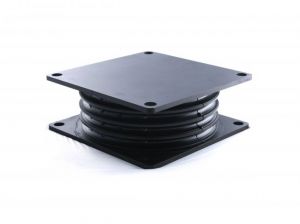

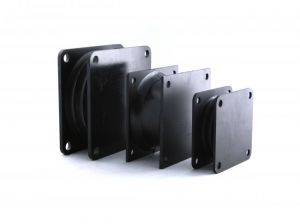

Each mount consists of two heavy duty square outer plates with corner holes for fixings, fully bonded to circular profiled rubber layers separated by interleaf plates.

High compression capacity, low shear stiffness and relatively low installed heights make this mount ideal for several applications.

Typical Applications Include:

  • Crushers.
  • Screens.
  • Vibratory rollers.
  • Presses.
  • Mills.
  • Hoppers.
  • Heavy machinery.
  • Grinders.
  • Feeder screens.
Enquire About This Product

Technical PDFS

04 A 62 15k

63 A 01 16c

Part Numbers

VS6301 N45, VS6301 N60
VS6302 N45, VS6302 N50, VS6302 N60
VS6303 N45, VS6303 N55, VS6303 N60
VS6016 N40, VS6016 N50, VS6016 N60
