Spring Mountings Type VSMB : Load Range 5kg - 130kg

Click Here To Enlarge Click Here To Enlarge
Click Here To Enlarge
Click Here To Enlarge

Description:

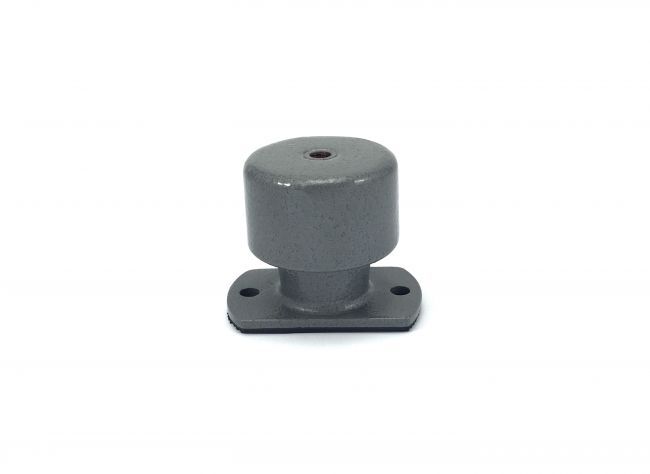

Vibracoustics Ltd VSM B Type Spring Mountings are a range of durable, small circular fully enclosed steel spring mountings which are produced as standard with cast Aluminium housings. Gun metal housings are also available to special order.

Standard maximum working deflection for all types is 25mm, with optional 50mm internal springs available for certain sizes. Once the mountings are correctly installed, any excessive lateral and upward vertical displacements are snubbed by an internal rubber ‘O’ ring which also prevents metal to metal contact.

The mountings are ideal for the installation of slow speed machines and service equipment on upper floor locations.

Enquire About This Product

Technical PDFS

94 A 02 15j

Part Numbers

VSMB140
VSMB115
VSMB090
VSMB070
VSMB045
VSMB027
