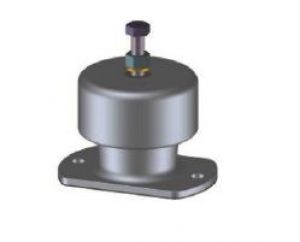

Spring Mountings Type VSME : Load Range 150kg - 1200kg

Click Here To Enlarge

Description:

Vibracoustics Ltd VSM E Type Spring Mountings are a range of durable, fully enclosed circular steel spring mountings which are produced as standard with cast Aluminium housings. Gun metal housings are also available to special order.

Standard maximum working deflection for all types is 25mm, with optional 50mm internal springs available for certain sizes. Once the mountings are correctly installed, any excessive lateral and upward vertical displacements are snubbed by an internal rubber ‘O’ ring which also prevents metal to metal contact.

The mountings are ideal for the installation of slow speed machines and service equipment on upper floor locations.

Enquire About This Product

Technical PDFS

94 A 05 15j

Part Numbers

VSME1300
VSME1200
VSME1100
VSME1000
VSME910
VSME820
VSME725
VSME640
VSME550
VSME450
VSME360
