UD Bushes

Click Here To Enlarge Click Here To Enlarge Click Here To Enlarge
Click Here To Enlarge
Click Here To Enlarge
Click Here To Enlarge

Description:

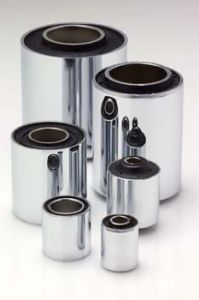

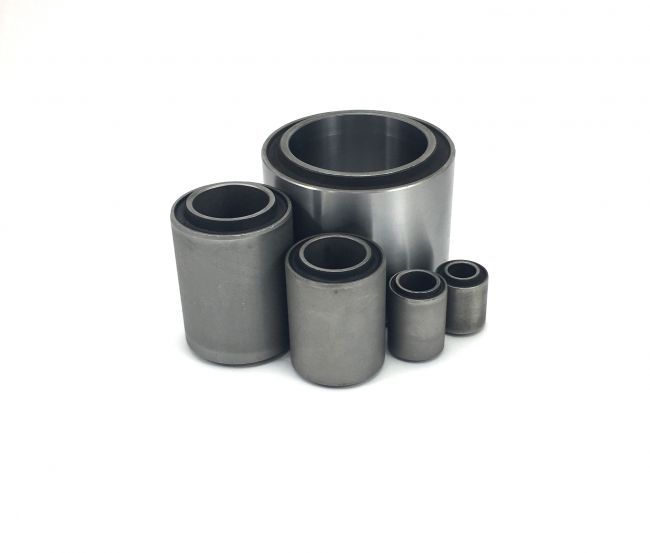

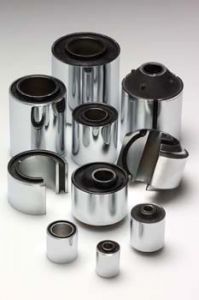

Vibracoustics Ltd UD Bushes are maintenance free flexible bearing units designed to reduce energy transmission into structures. Manufactured using first grade natural rubber compounds fully bonded to both inner and outer sleeves. They are pre-stressed for maximum fatigue life and provide excellent performance in radial, axial, and torsional directions.

Typical Applications Include:

 • High performance vehicle suspension bearings.
 • Heavy plant drive couplings.
 • Elastic bearings for shafts and linkages.
 • Torque-arm linkage bearings.

 Non standard designs / sizes available on request.

Enquire About This Product

Technical PDFS

10 A 01 15e

10 A 02 15e

Part Numbers

VS10168, VS10305, VS10036, VS10337, VS10156, VS10037, VS10039, VS10040, VS10287, VS10041, VS10043, VS10157, VS10044, VS10169, VS10158, VS10047, VS10048, VS10049, VS10050, VS10159, VS10054, VS10170, VS10171, VS10055, VS10060, VS10288, VS10061, VS10224, VS10181, VS10064, VS10127, VS10065, VS10136, VS10130, VS10069, VS10163, VS10070, VS10072, VS10075, VS10078, VS10220, VS10079,
VS10084, VS10117, VS10088, VS10090, VS10285, VS10093, VS10297, VS10095, VS10360, VS10097, VS10102, VS10141, VS10318, VS10722, VS10802, VS10805, VS10531

VS1018, VS1025, VS1005, VS1006, VS1020, VS1016, VS1037, VS1023, VS1007, VS1014, VS1003, VS1045, VS1046, VS1060, VS1061
